The Future of Soil Stabilization

Insert Joint Geocell

Features

  • High strength Insert Joint Geocell is a new product developed by our company, The jointing of the sheet is connected by a kind of U-shaped plug, so as to solve the problem that the strength of the cell sheet and the jointing are greatly different, and this integral whole structure makes it have extremely high jointing peel strength.
  • It is developed and produced by a relatively special processing method, which allows it to meet the requirements of different civil engineering for the ultra-high tensile strength and low elongation of the cell.
  • The material can be produced from PET (Polyethylene Terephthalate), PP (Polypropylene), which can ensure outstanding aging resistance and long service life.

Product

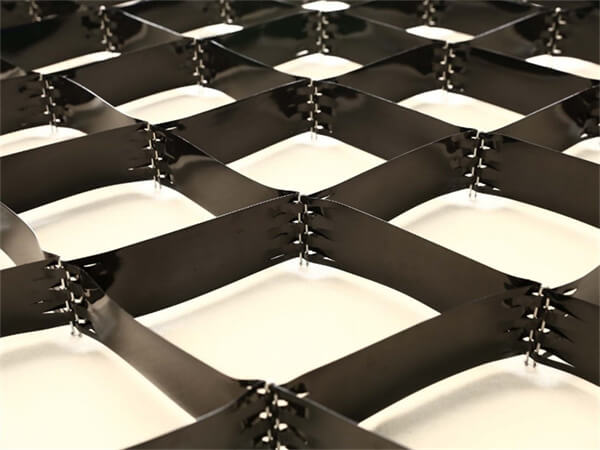

High-Strength-Insert-Joint-Geocell-5

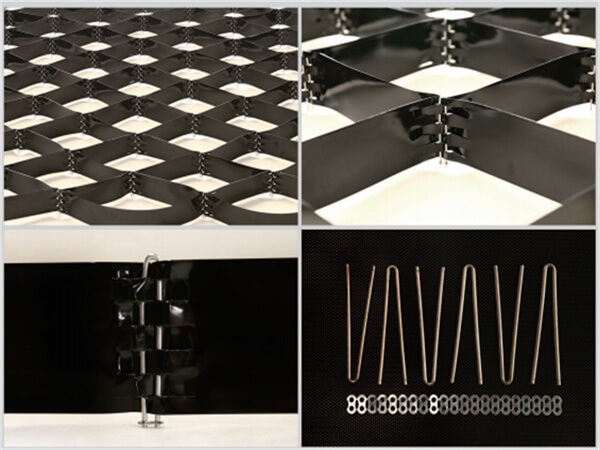

High-Strength-Insert-Joint-Geocell-3

Case

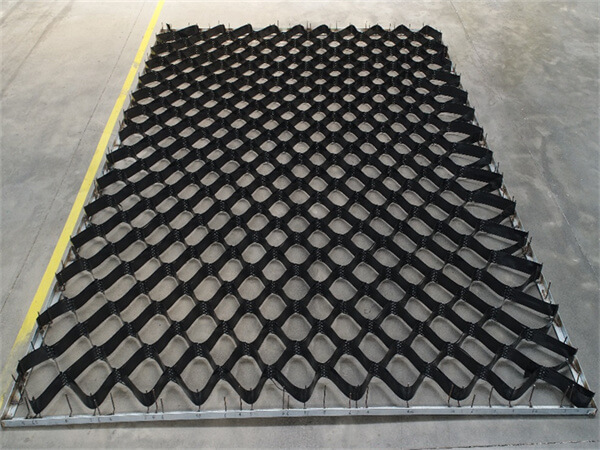

High-Strength-Insert-Joint-Geocell-4

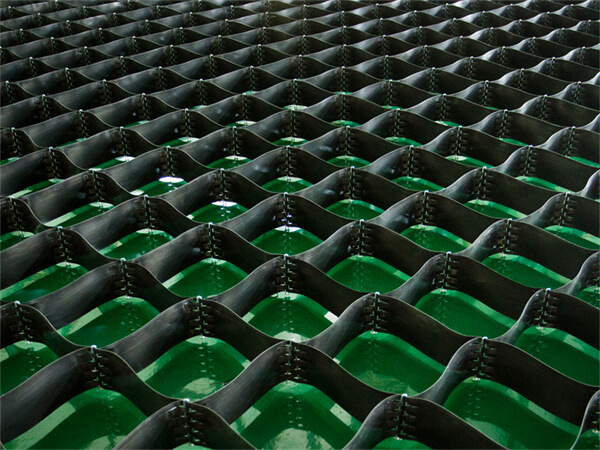

High-Strength-Insert-Joint-Geocell-1

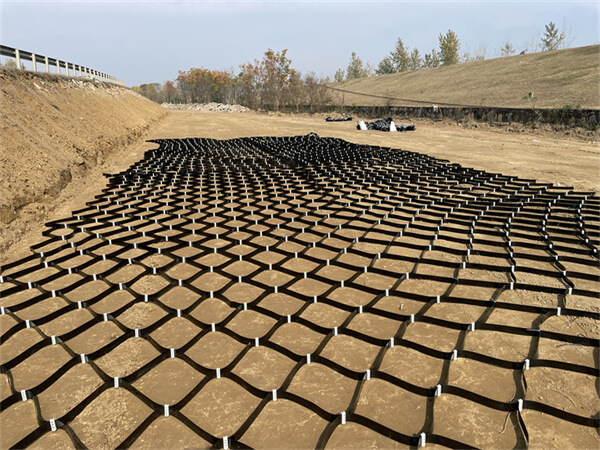

High-Strength-Injection-Molding-Geocell-6

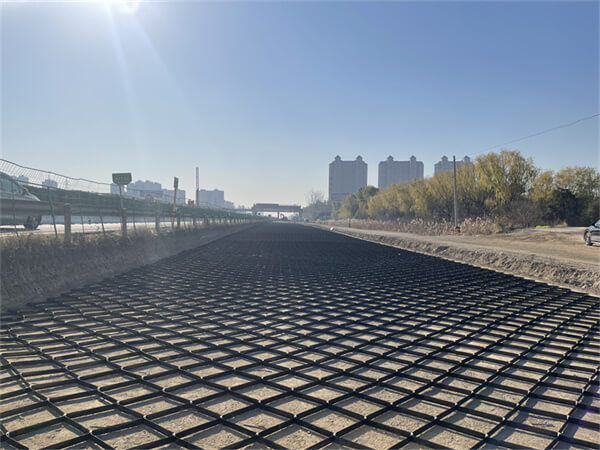

High-Strength-Injection-Molding-Geocell-1

Working principle

Material PET / PP
ColorBlack, Green, Tan, White
Jointing MethodInsert Joint
SurfaceSmooth & Non-Perforated
Thickness (mm)0.4 – 0.8ASTM D5199
Height(mm)50, 75, 100, 150, 200ASTM D5199
Jointing Distance(mm)300 – 800ASTM D5199
Vertical Sheet Tensile Strength (KN/m)≥120ASTM D638
Horizontal Sheet Tensile Strength (KN/m)≥15 (PET)ASTM D638
Jointing Split Strength (KN/m)≥160ISO13426-1 Method C
Elongation(%)≤15ASTM D 6693

APPLICATION

It is mainly applied to all kinds of roadbeds and soft foundation treatment, such as highways, railways, deserts, swamps, tidal flats, airports, ports, docks, etc. It can also be used in loess collapsible roadbeds, expansive soil, and other roadbed reinforcement. Also widely used in slope protection, channel protection, erosion control and retaining wall projects.
