The Future of Soil Stabilization
Mortise-Tenon Geocell
Product Introduction

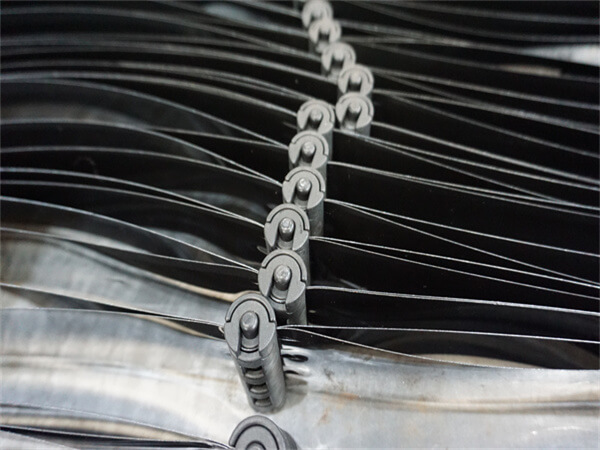

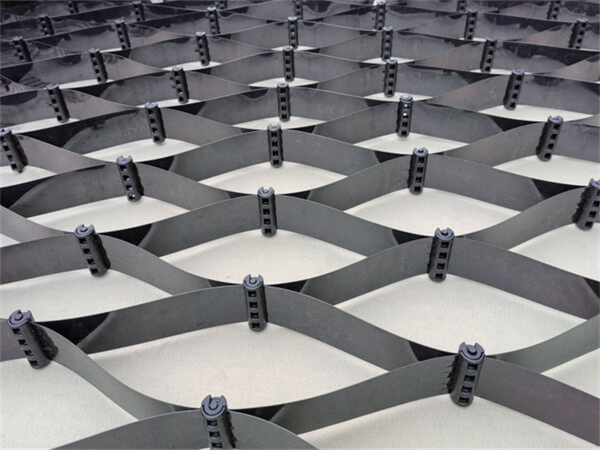

- High-strength Mortise-Tenon Geocell is a new product independently developed by our company. It adopts specially designed high-strength plastic mortise and tenon components, connected via plug-in positioning. This integrated structure delivers extremely high joint peel strength.
- Besides high tensile strength and superior joint peel strength, the all-plastic connection structure offers excellent environmental performance and stability. The product causes no soil pollution even after long-term contact with acidic or alkaline soil, making it highly eco-friendly.
- Available in PET (Polyethylene Terephthalate), PP (Polypropylene) and HDPE (High-density Polyethylene), the geocell ensures outstanding aging resistance and long service life.
Product
Case
Specification
| Material | HDPE / PP / PET | |||
| Color | Black, Green, Tan, White | |||
| Jointing Method | Mortise -Tenon | |||
| Surface | Smooth & Non-Perforated | |||
| Thickness (mm) | 0.45 – 0.8 | ASTM D5199 | ||
| Height(mm) | 50, 75, 100, 150, 200 | ASTM D5199 | ||
| Jointing Distance(mm) | 330 – 1600 | ASTM D5199 | ||
| Sheet Tensile Strength (KN/m) | ≥100 (HDPE/ PP) | ASTM D638 | ||
| ≥120 (PET) | ||||
| Elongation at break(%) | 8 – 20 (HDPE/ PET) | ASTM D 6693 | ||
| 6 – 15 (PP) | ||||
| Carbon Black Content(%) | 2.0-3.0 | ASTM D 1603 | ||
| Environment Stress Crack Resistance (hours) | ≥300 (HDPE) | ASTM D1693 | ||
| Oxidative Induction Time (minutes) | ≥20 (HDPE/ PP) | ASTM D3895 | ||
| Junction Strength – Shear (KN/m) | ≥80 | ≥100 | ≥120 | ISO13426-1 Method A |
| Junction Strength – Peeling (KN/m) | ≥40 | ≥80 | ≥120 | ISO13426-1 Method B |
| Junction Strength – Splitting (KN/m) | ≥100 | ≥160 | ≥240 | ISO13426-1 Method C |
APPLICATION
It is mainly applied to all kinds of roadbeds and soft foundation treatment, such as highways, railways, deserts, swamps, tidal flats, airports, ports, docks, etc. It can also be used in loess collapsible roadbeds, expansive soil, and other roadbed reinforcement. Also widely used in slope protection, channel protection, erosion control and retaining wall projects.
Packaging & Installation
Typically bundled in 2.0–2.5 meter rolls.
No pallet required for shipping.
For secure panel connection, use our proprietary connectors, zip ties, or anchor head.
